HYCOMP MODEL AN17D-H33321-AJMVAOO SINGLE-STAGE OIL FREE GAS BOOSTER COMPRESSOR

Description

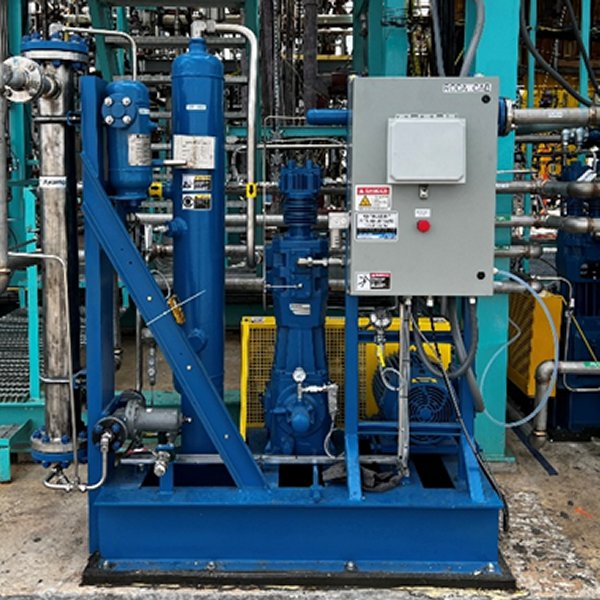

Slightly used Hycomp model AN17D-H33321-AJMVAOO single-stage, oil free gas booster compressor

• 20 HP Teco premium efficiency invertor duty, TEFC, 230/460V electric motor
• Stainless steel tubing
• Explosion proof crankcase heater
• Water-cooled aftercooler
• 150 PSIG suction bottle
• 425 PSIG discharge pulsation bottle
• Class1, Div 2 Grp ABCD pressure switches
• Recycle valve
• Evolution XC-B PLC ACS compressor control panel, suitable for:
  • 120Vac customer power
  • Inland, indoor, on-skid location
  • Electric Motor driver, gas compressors
  • Panel approved/labeled Class 1, Division 2, Groups B, C & D, T3
  • Beijer X2 extreme 7 HP SC high performance PLC and 7″ touch screen color HMI
  • Beijer M-Series rugged I/O for extreme environments
  • Straightforward and refined operator interface developed specifically for ACS compressors
  • Easy to read current Alarm list and Alarm History list with time of occurrence
  • Run hours/elapsed time meter for service monitoring
  • Hard-wired ESD circuit with remote trip terminals
  • Premium Phoenix Contact Push-in terminals, relays, power supplies and other components
  • Type 4 sealed cabinet to protect critical hardware
  • Field tested design and construction with very high operational reliability
  • Full Modbus TCP/IP, Ethernet/IP, and Profinet support as required for remote monitoring, control and SCADA integration
• Variable speed drive package:
  • 20 HP, 480/3/60 variable speed drive and disconnect package, ship loose for customer installation.
  • Single point power connection to feed all skid loads including motor/circuit protection.  Field wired control signals only require one ethernet and 1 pair for Emergency Stop as opposed to numerous discrete signals in typical systems.
• The compressor was manufactured in 2011 and installed at a pilot plant and put into operation in 2025 and have low operating hours
• Located in Texas
