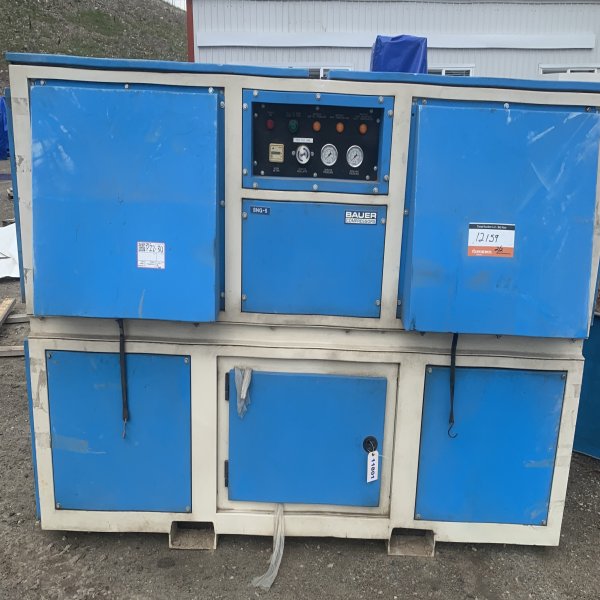

RECONDITIONED Bauer Model SNG-5S Complete Nitrogen Generator Package

Description

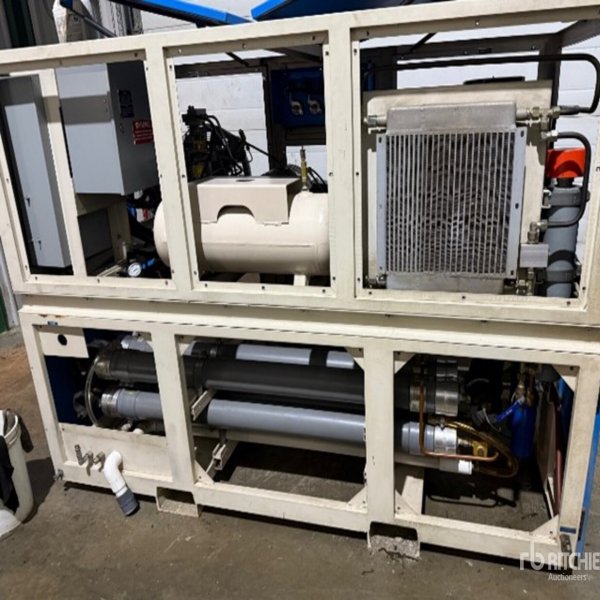

RECONDITIONED Bauer Model SNG-5S nitrogen generator package including:

• Rotorcomp model NK60UF rotary screw feed air compressor driven by a 20 HP electric motor and producing 45 SCFM of compressed air at 175 PSIG
• Air-cooled aftercooler
• Low pressure receiver
• Primary and secondary prefilters with auto drains
• Preheater
• Membrane nitrogen generator
• After filter
• Bauer Model BK-12.2 high pressure booster compressor driven by a 10 HP electric motor and rated for 15 SCFM at 4000 PSIG
• High pressure filters
• Pressure maintaining valve
• High pressure receiver tank
• Service pressure regulator
• Steel enclosure
• Operating pressure range:  3000 – 5000 PSIG
• Produces 15 SCFM of nitrogen at 97% purity and 4000 PSIG or 8 SCFM of nitrogen at 99.5% purity and 4000 PSIG
• Operating manuals
• Manufactured in 2001
• Unit will be reconditioned and tested under power/load prior to shipping.  Contact us for delivery lead time
