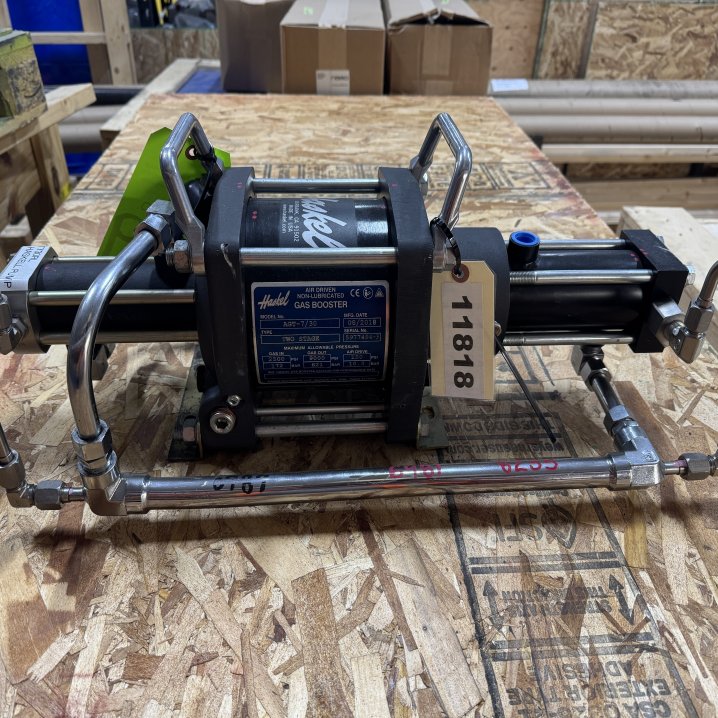

HASKEL MODEL AGT-7/30 AIR DRIVEN GAS BOOSTER

Description

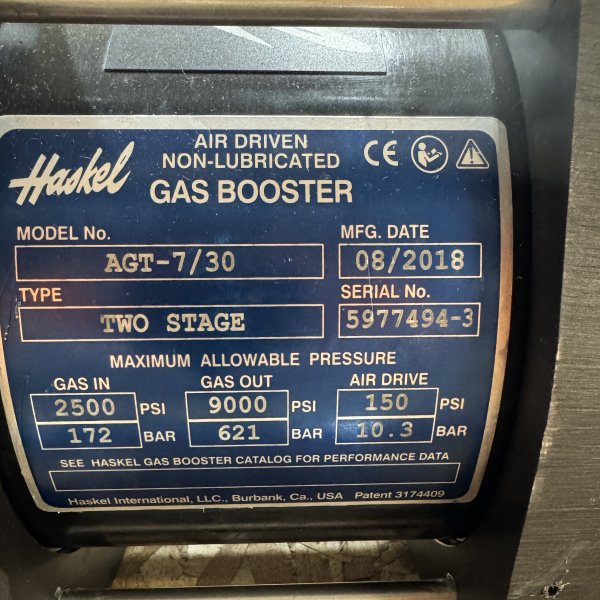

Haskel model AGT-7/30 air-driven, two-stage, non-lubricated gas booster:

• Maximum gas inlet pressure:  2500 PSI
• Maximum gas outlet pressure:  9000 PSI
• Air driven pressure:  150 PSI
• First stage ratio:  7:1
• Second stage ratio:  30:1
• Boost 1.2 SCFM Gas from 50 PSI to 2000 PSI while using 40 SCFM Air @ 90 PSIG supply pressure
• Boost 1.9 SCFM Gas from 75 PSI to 2000 PSI while using 40 SCFM Air @ 90 PSIG supply pressure
• Boost 2.3 SCFM Gas from 100 PSI to 2500 PSI while using 40 SCFM Air @ 90 PSIG supply pressure
• Boost 2.6 SCFM Gas from 150 PSI to 3000 PSI while using 32 SCFM Air @ 90 PSIG supply pressure
• Manufactured in 2018
• Serviced and tested
