11682 COMPLETE 10,000 SCFH, SKID MOUNTED NITROGEN GENERATOR PACKAGE

Stock No : 11682
Size : 10,000 SCFH
Brand : ACS/On-Site
Model : NM-1000-4-710
Price : $225,000 USD
Size : 10,000 SCFH
Brand : ACS/On-Site
Model : NM-1000-4-710
Price : $225,000 USD
Location : Our Warehouse
Condition : AS-NEW
Warranty : Contact Us
Condition : AS-NEW
Warranty : Contact Us
Status : SOLD
Weight : 26,000 lbs
Dimensions : 32' Long x 10' 10" Wide x 10' 6" High
Weight : 26,000 lbs
Dimensions : 32' Long x 10' 10" Wide x 10' 6" High
Description:
Complete skid mounted nitrogen generator package housed in a heated insulated metal building including:
- 125 HP Atlas Copco model GA90FF, full-feature rotary screw feed-air compressor complete with air cooled aftercooler, refrigerated compressed air dryer and acoustic enclosure
- Filter purification module
- 400 gallon ASME code compressed air buffer tank
- On-Site model NM-1000-4-710 membrane type nitrogen generator rated for 10,000 SCFH at 97% purity
- 400 gallon ASME code nitrogen storage tank
- 50 HP Knox-Western model TP-145 nitrogen booster compressor designed for 1800 PSIG discharge pressure

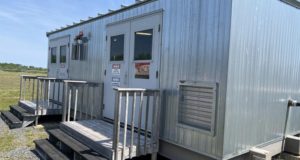

- Insulated metal building with interior lighting, heat and nitrogen warning system
- Parts and operating manuals, drawings and quality control documentation
- This package was manufactured in 2014, but the plant was never put into operation, AS-NEW condition
- The current nitrogen booster is rated for 1800 PSIG discharge pressure, however we can install a higher-pressure booster, at additional cost, if required
- Approx. shipping dimensions: 32′ long x 10′ 10″ wide x 10′ 6″ high
- Approx. shipping weight: 26,000 lbs.
- Our stock number 11682
